AI Vision Badge Coloring Machine – Stop Drawing Every Badge Dispensing Path Manually

Import your badge design. Let AI vision recognize the actual workpieces. Select the colors. Automatically generate the dispensing path. Start production.

For badge manufacturers, buying an automatic coloring machine should mean more than replacing manual dispensing.

The bigger question is:

How much manual programming is still required before your machine can actually start production?

Many conventional badge coloring machines still require an operator to manually draw, trace, or program the processing pattern for each new badge design.

When a factory handles hundreds of customized enamel pin and metal badge designs, this preparation process can become a major production bottleneck.

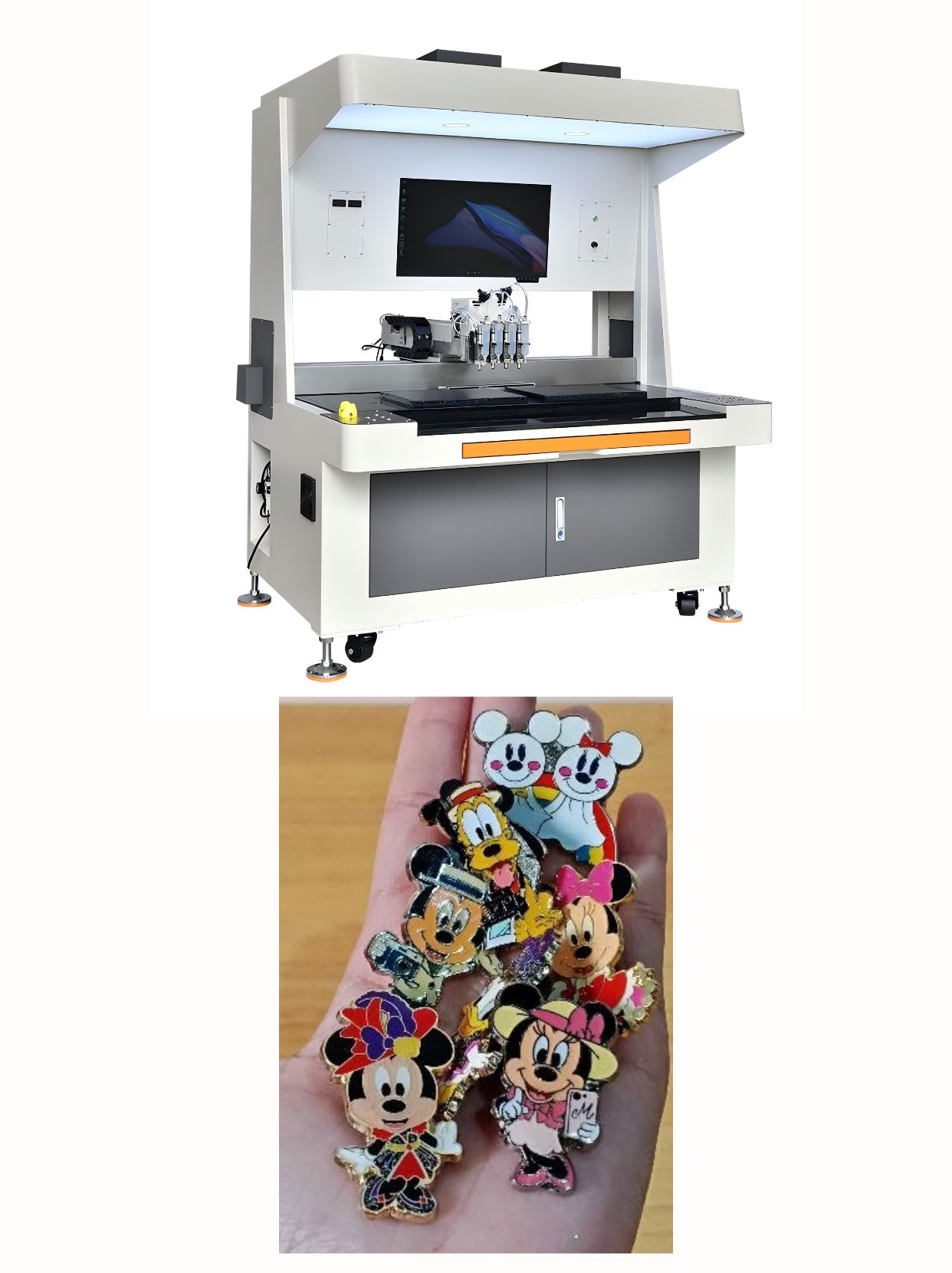

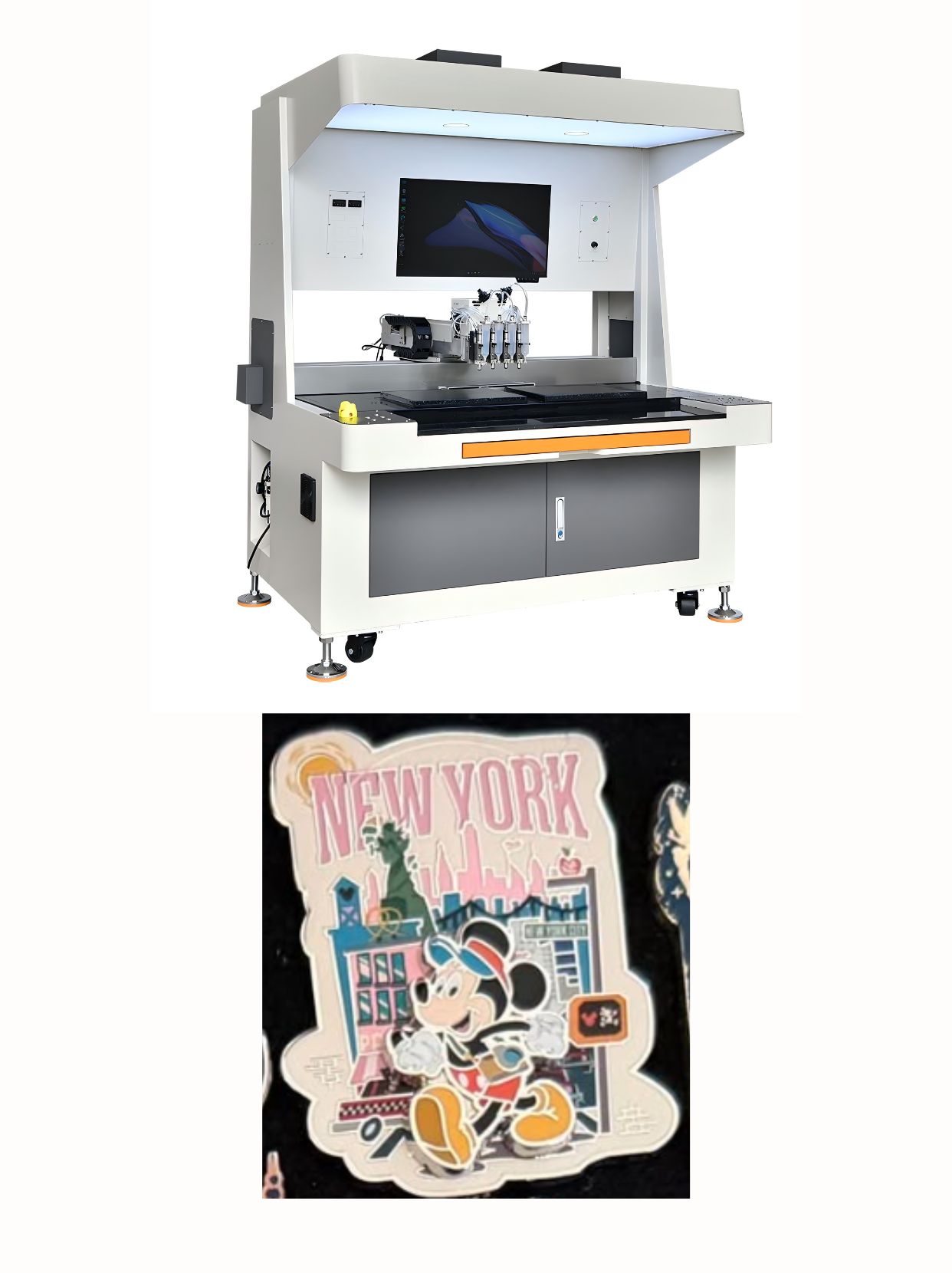

The WISEDO AI Panoramic Vision Badge Coloring Machine changes this workflow.

The machine photographs the actual badge workpieces, recognizes their processing positions, imports the original AI-format badge artwork, and uses dedicated badge coloring software to create the dispensing program.

After the operator selects the required color areas, the software automatically generates an optimized dispensing path.

No need to manually draw every processing path point by point.

From Badge Artwork to Automatic Coloring in a Simpler Workflow

Traditional automation can still require considerable human programming.

WISEDO focuses on automating not only the dispensing process, but also the preparation required before dispensing.

STEP 1 — Photograph the Actual Badges

The panoramic vision system captures the workpieces placed inside the processing area.

Instead of relying only on theoretical coordinates, the system identifies the actual processing positions of the badges.

STEP 2 — Create the Actual Workpiece Image

The captured image is used to establish the actual badge processing reference inside the software.

This provides a visual basis for matching the digital design with the physical products.

STEP 3 — Import Your Original AI Badge Design

Import the badge artwork in AI format into WISEDO's dedicated badge coloring software.

The system now has both:

the digital badge design + the image of the actual badge workpieces.

STEP 4 — Select Different Color Areas

Use the software's color-selection tool to select the areas corresponding to different enamel or paint colors.

Operators do not need to manually trace the entire dispensing path.

STEP 5 — Automatically Generate the Optimized Dispensing Path

After the processing areas are defined, the software automatically generates the dispensing path.

This significantly reduces repetitive programming when changing from one badge design to another.

STEP 6 — Start Automatic Badge Coloring

The machine follows the generated program and performs the dispensing process automatically.

The worker mainly handles loading and unloading, rather than manually coloring every badge or drawing every processing path.

WISEDO AI Vision vs. Conventional Badge Coloring Machines

The difference becomes clearer when comparing the complete production workflow rather than machine movement speed alone.

Why Automatic Path Generation Matters to a Badge Factory

Consider two automatic badge coloring machines.

Both can move automatically.

Both can dispense enamel automatically.

But one machine requires an experienced worker to manually create the processing pattern every time a new badge arrives.

The other can use the actual workpiece image and imported artwork to simplify processing setup and automatically generate the dispensing path.

The difference appears before the first drop of enamel is dispensed.

For a factory producing the same badge design continuously, programming time may represent only a small part of total production time.

But for factories handling:

custom enamel pins, promotional badges, souvenir badges, corporate logos, sports badges, event badges, medals, metal tags, nameplates, and frequent small-batch customized orders,

changeover time can become a significant part of total production cost.

This is why WISEDO focuses on reducing the work required between receiving a new design and starting production.

Reduce Operator Training Instead of Creating Another Skilled-Labor Bottleneck

Replacing manual badge coloring with automation should reduce dependence on skilled labor.

But if the automatic machine itself requires an experienced programmer to manually draw every processing path, the factory may simply replace one labor bottleneck with another.

WISEDO's dedicated badge coloring software is designed to simplify this process.

The workflow becomes:

Capture → Import → Select → Generate → Dispense

Operators do not need to spend extensive time learning how to manually create every complex dispensing trajectory.

This can make it easier for factories to train new machine operators and standardize the production process across different shifts.

More Controllable Dispensing for Small Lines and Fine Badge Details

Fine badge designs create another challenge.

Small letters, narrow lines, tiny cavities and detailed logos leave very little room for excessive dispensing.

Too much material → overflow.

Too little material → incomplete filling.

That means positioning accuracy alone is not enough.

The dispensing amount must also be controllable.

WISEDO's badge coloring machine allows dispensing parameters to be controlled according to the processing requirements, helping the machine handle small lines and narrow coloring areas with greater consistency.

For badge factories, better dispensing control can help reduce defects associated with overflow or insufficient filling and improve batch consistency.

Why Machine Speed Alone Does Not Equal Production Efficiency

When comparing badge coloring machines, buyers often ask:

"How fast can the machine dispense?"

That is important—but it is only one part of production efficiency.

A more complete calculation is:

Programming Time + Positioning Time + Adjustment Time + Dispensing Time + Changeover Time = Real Production Time

If a machine dispenses quickly but requires substantial manual programming for every new design, its actual productivity in a high-mix factory may be very different from its theoretical dispensing speed.

WISEDO therefore focuses on reducing preparation and programming work in addition to automating dispensing.

Built for High-Mix, Customized Badge Production

The AI vision workflow is particularly valuable for manufacturers producing many different designs.

Typical applications include:

• Enamel pins

• Metal badges

• Lapel pins

• Logo badges

• Promotional badges

• Souvenir badges

• Medals

• Metal tags

• Nameplates

• Customized metal accessories

• Other recessed products requiring controlled paint or enamel filling

For factories receiving new customer artwork frequently, reducing programming and changeover complexity can directly improve production flexibility.

Three Key Advantages for Badge Manufacturers

1. Faster Programming

Instead of manually drawing every dispensing pattern, operators can import the AI artwork, select the required color areas, and let the software generate the processing path.

Result: Less repetitive programming for new designs.

2. Easier Worker Training

The simplified software workflow reduces dependence on workers with extensive manual path-programming experience.

Result: New operators can focus on machine operation, loading, unloading and production management.

3. More Controllable Badge Dispensing

Dispensing parameters can be adjusted according to different processing requirements, including small lines and fine areas.

Result: Better control over material filling and a lower risk of overflow in detailed badge designs.

Don't Just Compare Machines. Compare the Complete Workflow.

When choosing an automatic badge coloring machine, ask the supplier to demonstrate the entire process with a completely new badge design.

Don't only watch the machine dispense.

Watch what happens before dispensing begins.

Ask:

How is the actual badge position recognized?

Does the operator need to manually draw the processing pattern?

How long does it take to program a new design?

Can the original badge artwork be imported?

How are different color areas selected?

Can the software automatically generate the dispensing path?

How is the dispensing amount controlled for tiny lines and narrow areas?

These questions reveal much more about real factory productivity than dispensing speed alone.

Test the Machine With Your Own Badge Before You Buy

The best way to evaluate a badge coloring machine is not by watching a standard demonstration sample.

Test your own product.

Send WISEDO your:

1. Actual badge samples
2. AI-format design artwork
3. Color requirements
4. Current production process
5. Expected production volume

Our team can test your samples and demonstrate how the AI panoramic vision system recognizes the workpieces, how the software creates the processing program, and how the machine performs the actual dispensing process.

See How Much Manual Programming Your Factory Can Eliminate

If you currently use manual badge coloring or an automatic machine that still requires workers to manually draw processing patterns, send us one of your typical badge designs.

Let the production test speak for the machine.

Contact WISEDO for a free badge sample test and machine demonstration.

Frequently Asked Questions

What is an AI vision badge coloring machine?

An AI vision badge coloring machine combines workpiece visual recognition, digital artwork processing, path generation and automatic dispensing. WISEDO's system captures the actual badge workpieces, imports the original AI artwork and generates the dispensing path after the required color areas are selected.

Does the operator need to manually draw the badge dispensing path?

The WISEDO workflow is designed to reduce manual path drawing. After importing the AI design and selecting the required processing areas, the dedicated software automatically generates the dispensing path.

Can the machine recognize the actual position of the badge?

Yes. The panoramic vision system photographs the actual workpieces and identifies their processing positions for subsequent production.

Is the machine difficult for new workers to operate?

The workflow is designed to reduce dependence on complex manual path programming. Operators mainly need to understand workpiece loading, artwork import, color-area selection, production settings, and loading/unloading procedures.

Can it process small lines on enamel pins?

The dispensing process can be controlled according to the processing requirements. This is particularly important for small lines, narrow areas and fine badge details where excessive material can cause overflow.

What files should I send for a sample test?

For a more representative test, send the actual badge sample together with its original AI-format design artwork and explain the required colors and production requirements.

Can I test my badge before purchasing the machine?

Yes. Send your badge samples and design files to WISEDO for a free sample test. Testing your own product allows you to evaluate the actual programming workflow, dispensing performance and finished result before making an equipment decision.
